Turck

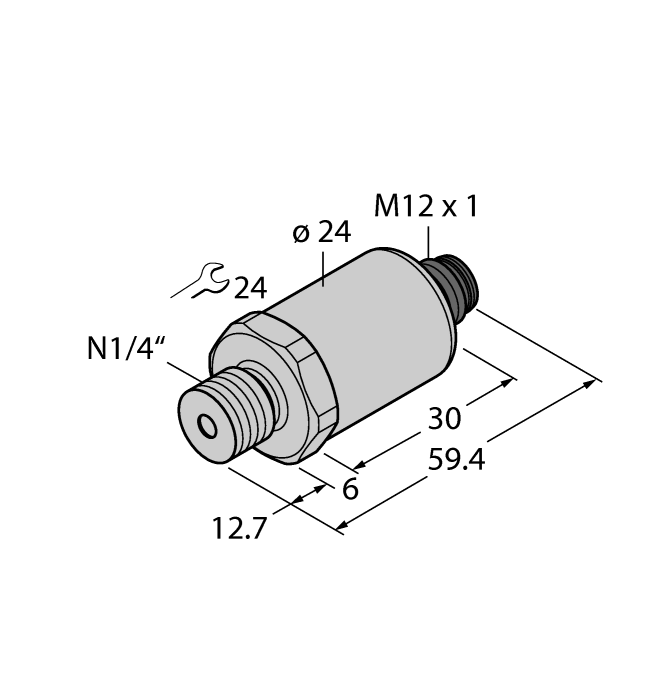

Turck Pt60R-2003-Iol-H1141 Pressure 100017822

(No reviews yet) Write a Review
SKU:
PT60R-2003-IOL-H1141
Condition:
New
Availability:
Factory Stock: 2
EAN:
4047101522471
eCl@ss-Code (V5.1.4)::
27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number:
90262020000
Country of origin:
CH
Weight:
93 g
Design:
Without display
Process connection:
1/4? NPT-18 male thread
Pressure type:
Relative pressure
Pressure range bar:
0…60 bar
Pressure range psi:
0…870.23 psi
Operating voltage:
18…33 VDC
Electrical output:
2 × switching output
Communication protocol:
IO-Link
Electrical connection:
Connector, M12 × 1
Housing material:
Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Pressure transducer material:
Stainless steel 1.4016 (AISI 430)
Medium temperature:
-40…+135 °C
Ambient temperature:
-30…+85 °C
Protection class:
IP67
Approvals:
CE, Metrological certification (RUS), cULus
  • Turck Pt60R-2003-Iol-H1141 Pressure Transmitter, IO-Link with Two Switching Outputs
  • Turck Pt60R-2003-Iol-H1141 Pressure Transmitter, IO-Link with Two Switching Outputs
$211.60

Description

Pressure Transmitter, IO-Link with Two Switching Outputs, Fully welded metal measuring cell, 1133VDC, NO/NC contact, 2 PNP/NPN outputs, IO-Link, Pressure range 060 bar rel. Fully welded metal measuring cell; Pressure range 0…60 bar rel.; 11…33 VDC; NO/NC contact; 2× PNP/NPN outputs; IO-Link; Process connection 1/4-18 NPT male thread; Plug-in device; M12 × 1;
