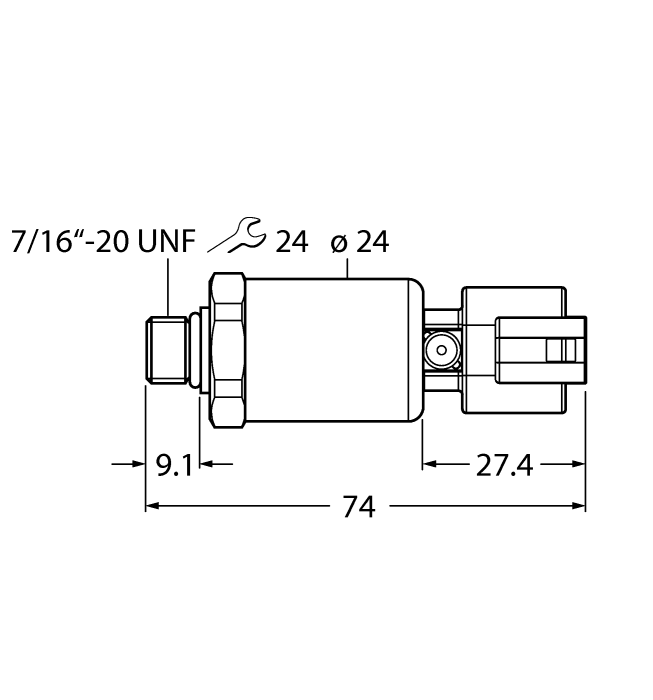

Turck Pt7500Psig-2105-U6-Dt043P Pressure 100002004
Turck
$194.70
Manufacturer's Part Number: 100002004
Pressure Transmitter. Ratiometric Output (3-Wire). Ident. no.: 100002004. For mobile hydraulic applications. Fully welded metal measuring cell. Sealless. With pressure tip orifice. Compact and robust design. Excellent EMC properties. Excellent accuracy and long-term stability. Kfz-Norm ISO 16750. Pressure range 0
7500 psi rel.. 5 VDC ± 10 %. Ratiometric output 10
90 %. Process connection 7/16" UNF (SAE) male thread. Plug-in device, Deutsch DT04-3P
- Design:
- Without display
- Process connection:
- 7/16-20 UNF male thread
- Pressure type:
- Relative pressure
- Pressure range bar:
- 0 517.11 bar
- Pressure range psi:
- 0 7500 psi
- Operating voltage:
- 4.5 5.5 VDC
- Electrical output:
- Voltage output (3-wire)
- Voltage output:
- 0.5 4.5 V
- Electrical connection:
- Connector, Deutsch DT04-3P
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Material pressure transducer:
- Stainless steel 1.4404 (AISI 316L)
- Medium temperature:
- -40 +125 °C
- Ambient temperature:
- -40 +100 °C
- Protection class:
- IP69K
