Turck RA-BC-E-20-10-12
Turck
$90.00
Manufacturer's Part Number: 100048788

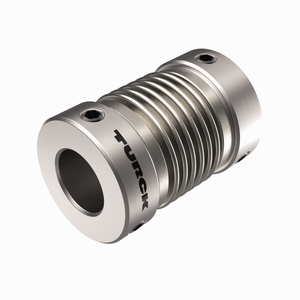

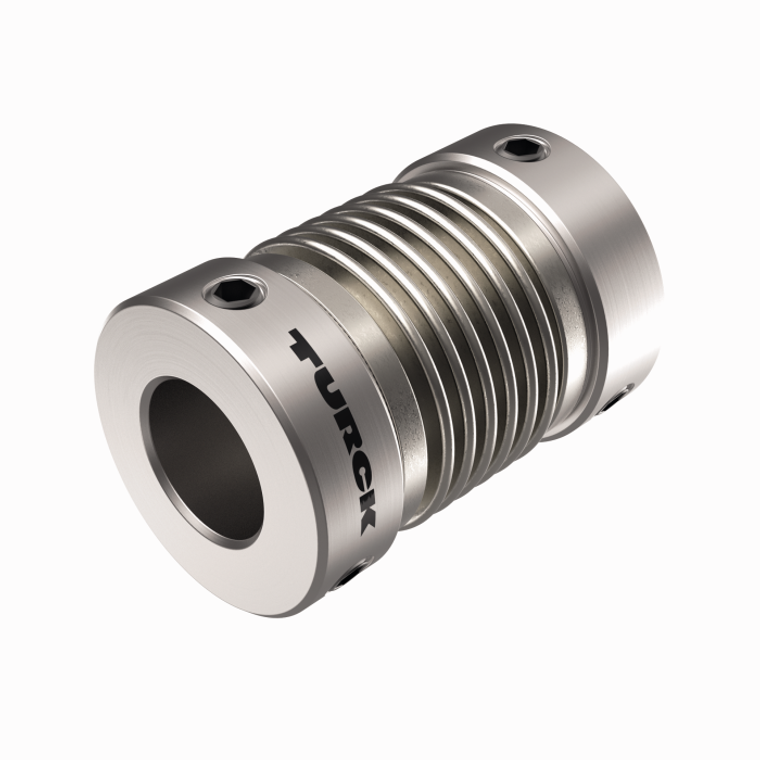

Accessories. Shaft Coupling Bellows Coupling. For Solid Shaft Encoders. Ident. no.: 100048788. Bellows coupling made of stainless steel à 20 mm. Max. torque: 120 Ncm. Max. shaft offset:. Radial: ±0.25 mm. Axial: ±0.4 mm. Angular: ±4°. Torsion spring stiffness: 150 Nm/wheel. Radial spring stiffness: 25 N/mm. Moment of inertia: 18 gcm2. Receptacle material: Stainless steel, 1.4404. Bellows material: Stainless steel, 1.4571. Bore diameter d1 = 10 mm, d2 = 12 mm
- Accessory type:
- Bellows coupling
- For use with:
- Encoders
- Ambient temperature:
- -40 +200 °C
- Datasheet:
- View
