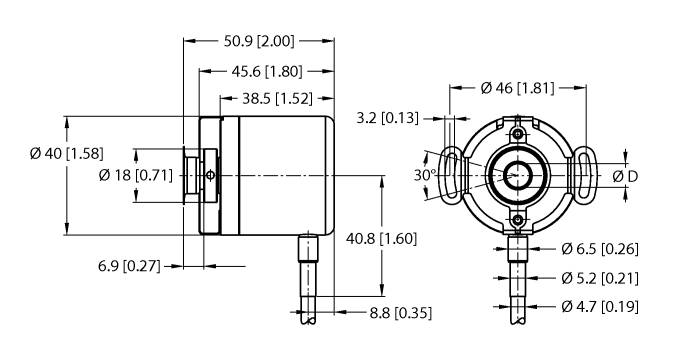

Turck Rei-E-112Ia0E-2B1024-C Encoder 100012073
Turck
$225.20
Manufacturer's Part Number: 100012073
Incremental Encoder. Efficiency Line. Ident. no.: 100012073. Flange with stator coupling, Ã 46 mm. Blind hole hollow shaft, Ã 6.35 mm (plug-in depth max. 18 mm). Optical measuring principle. Shaft material: stainless steel. Protection class IP64 on housing and shaft side. 20
+70 °C. Max. 4500 rpm. 10
30 VDC. Cable connection, 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 1024 pulses per revolution
- Encoder line:
- Efficiency-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 6.35
- Flange diameter:
- Ø 46 mm
- Flange type:
- Flange with stator coupling
- Resolution incremental:
- 1024 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Aluminium
- Ambient temperature:
- -20 +70 °C
- Protection class shaft:
- IP64
- Protection class:
- IP64
