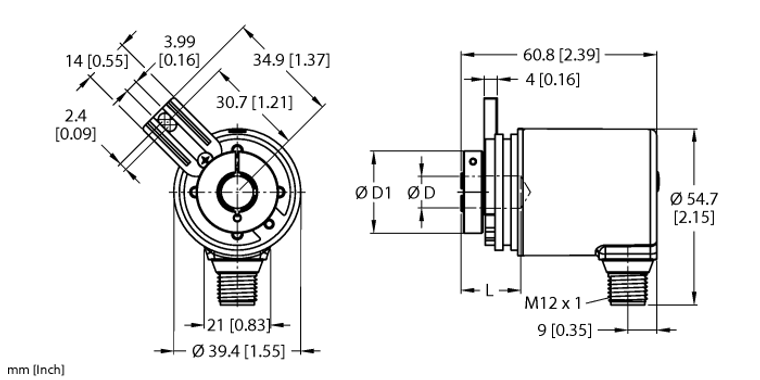

Turck Rem-191B8T-Iol32B-H1141 Encoder 100018248

Absolute Rotary Encoder - Multiturn, IO-Link, Industrial Line, Flange with long torque stop, Hollow shaft, 8mm, Optical measuring principle, Shaft material, stainless steel, , 10-30 VDC, SSI (Binary Code), M12 connection, 8-pin, , IP67 rated on the shaft side, 40+85 °C, Max. 4000 rev/min Flange with long torque stop; Hollow shaft; Ø 8mm; Optical measuring principle; Shaft material; stainless steel; IP67 rated on the shaft side; 40…+85 °C; Max. 4000 rev/min; 10-30 VDC; SSI (Binary Code); M12 connection; 8-pin; Singleturn resolution 14 bit scalable; default 14 bit; Multiturn resolution scalable only to 18 bits over total resolution; default 18 bits; Total resolution 32 bit scalable; default 32 bit
