Turck Rem-E-121T6C-9F32B-H1151 Encoder 100023363
Turck
$724.40
Manufacturer's Part Number: 100023363

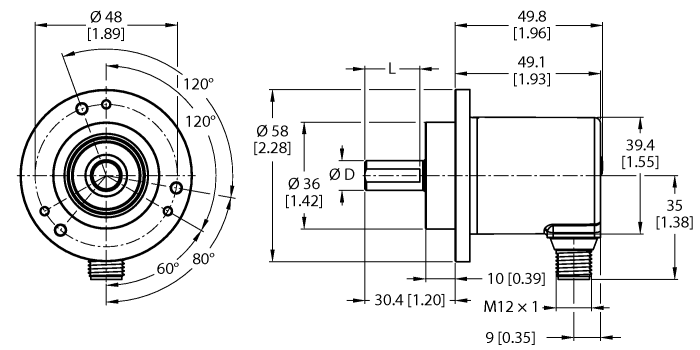

Absolute Rotary Encoder - Multiturn. Efficiency Line. Ident. no.: 100023363. Ã 58 mm clamping flange. Solid shaft, Ã 6mm x 12.5mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP64 on housing and shaft side. 20
+70 °C. Max. 4000 rpm (continuous operation 2000 rpm). Energy harvesting technology. 10-30 VDC. SAE J1939. M12 connection, 5-pin. Singleturn resolution 14 bit scalable, default 14 bit. Multiturn resolution scalable up to 29 bit over total resolution, default 18 bit. Total resolution 32 bit scalable, default: 32 bit
- Encoder line:
- Efficiency-Line
- Technology:
- Magnetic
- Output type:
- Absolute multiturn
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 6
- Flange diameter:
- Ø 58 mm
- Flange type:
- Clamping flange
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- SAE J1939
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -20 +70 °C
- Protection class shaft:
- IP64
- Protection class:
- IP64
