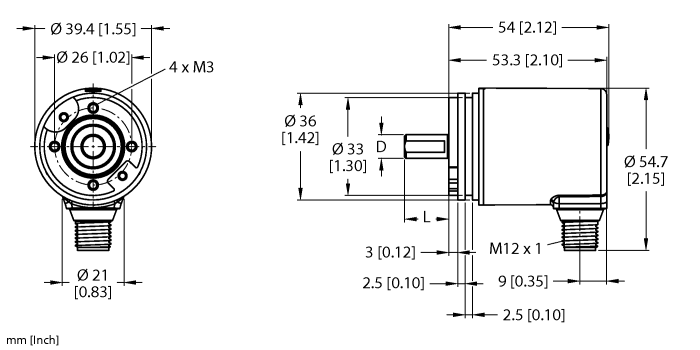

Turck Res-184S6S-9F14B-H1151 Encoder 100026157
Turck
$612.40
Manufacturer's Part Number: 100026157
Absolute Rotary Encoder - Singleturn. Industrial Line. Ident. no.: 100026157. Synchro flange, à 36 mm. Solid shaft, à 6 mm à 12.5 mm. Magnetic measuring principle. Shaft material: stainless steel. IP67 rated on the shaft side. 40
+85 °C. Max. 4000 rev/min. 10
30 VDC. SAE J1939. M12 Ã 1 male, 5-pin. 360° resolved in 14 bit (16384 positions)
- Encoder line:
- Industrial-Line
- Technology:
- Magnetic
- Output type:
- Absolute singleturn
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 6
- Flange diameter:
- Ø 36 mm
- Flange type:
- Synchro flange
- Measuring range:
- 0 360°
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- SAE J1939
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
