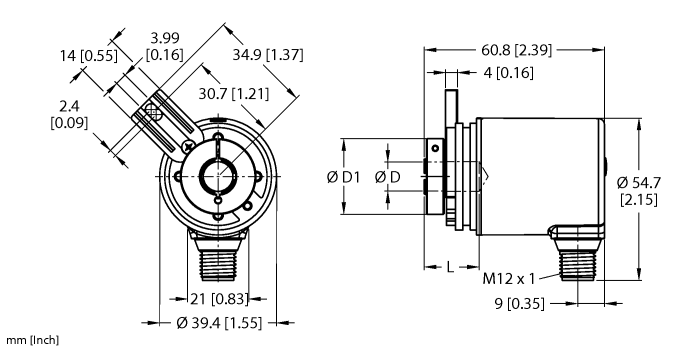

Turck Res-185B10T-9F14B-H1151 Encoder 100026167
Manufacturer's Part Number: 100026167
Absolute Rotary Encoder - Singleturn. Industrial Line. Ident. no.: 100026167. Flange with long torque stop. Hollow shaft, Ã 10mm. Optical measuring principle. Shaft material, stainless steel. IP67 rated on the shaft side. 40
+85 °C. Max. 4000 rev/min. 10
30 VDC. SAE J1939. M12 Ã 1 male, 5-pin. 360° resolved in 14 bit (16384 positions)
- Encoder line:
- Industrial-Line
- Technology:
- Magnetic
- Output type:
- Absolute singleturn
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 36 mm
- Flange type:
- Flange with mounting element
- Measuring range:
- 0 360°
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- SAE J1939
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
