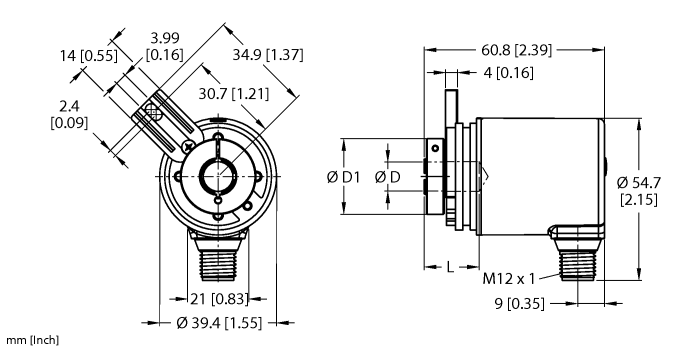

Turck Res-185B6T-9F14B-H1151 Encoder 100026165

(No reviews yet) Write a Review
SKU:
RES-185B6T-9F14B-H1151
Condition:
New
eCl@ss-Code (V5.1.4)::
27270501 -/- Encoder, absolute
Customs tariff number:
90318080000
Country of origin:
DE
Weight:
200 g
Encoder line:
Industrial-Line
Technology:
Magnetic
Output type:
Absolute singleturn
Shaft Type:
Blind hole shaft
Shaft diameter D [mm]:
6 mm
Flange diameter:
Ø 36 mm
Flange type:
Flange with mounting element
Measuring range:
0…360°
Operating voltage:
10…30 VDC
Communication protocol:
SAE J1939
Electrical connection:
Connector, M12 × 1
Housing material:
Die-cast zinc
Ambient temperature:
-40…+85 °C
Protection class shaft:
IP67
Protection class:
IP67
  • Turck Res-185B6T-9F14B-H1151 Absolute Rotary Encoder - Single-Turn, Industrial Line
  • Turck Res-185B6T-9F14B-H1151 Absolute Rotary Encoder - Single-Turn, Industrial Line
$641.50

Description

Absolute Rotary Encoder - Single-Turn, Industrial Line, Flange with long torque stop, Hollow shaft, 6mm, Optical measuring principle, Shaft material, stainless steel, , 1030ÿVDC, SAE J1939, M12ÿÿ1 male, 5-pin, IP67 rated on the shaft side, 40+85 °C, Max. 4000 rev/min
