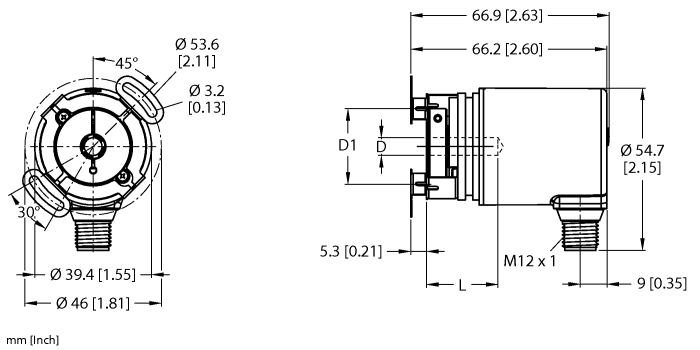

Turck Res-193B8E-Iol14B-H1141 Encoder 100020151
Turck
$602.00
Manufacturer's Part Number: 100020151
Absolute Rotary Encoder - Singleturn. IO-Link. Industrial Line. Ident. no.: 100020151. Flange with slotted flex mount, Ã 46 mm. Hollow shaft, Ã 8mm. Optical measuring principle. Shaft material, stainless steel. IP67 rated on the shaft side. 40
+85 °C. Max. 4000 rev/min. 10-30 VDC. SSI (Binary Code) . M12 connection, 8-pin. 360° resolved in 14 bit (16384 positions)
- Encoder line:
- Industrial-Line
- Technology:
- Magnetic
- Output type:
- Absolute singleturn
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 8
- Flange diameter:
- Ø 46 mm
- Flange type:
- Flange with stator coupling
- Measuring range:
- 0 360°
- Operating voltage:
- 18 30 VDC
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
