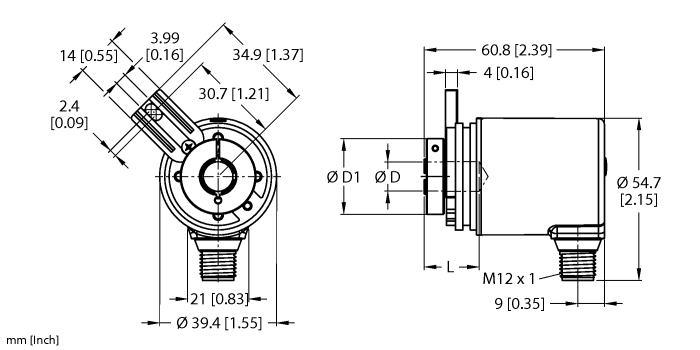

Turck Res-193Ba0T-Iol14B-H1141 Encoder 100020157

(No reviews yet) Write a Review
SKU:
RES-193BA0T-IOL14B-H1141
Condition:
New
EAN:
4047101544848
eCl@ss-Code (V5.1.4)::
27270501 -/- Encoder, absolute
Customs tariff number:
90318080000
Country of origin:
DE
Weight:
220 g
Encoder line:
Industrial-Line
Technology:
Magnetic
Output type:
Absolute singleturn
Shaft Type:
Blind hole shaft
Shaft diameter D [mm]:
6.35 mm
Flange diameter:
Ø 36 mm
Flange type:
Flange with mounting element
Measuring range:
0…360°
Operating voltage:
18…30 VDC
Communication protocol:
IO-Link
Electrical connection:
Connector, M12 × 1
Housing material:
Die-cast zinc
Ambient temperature:
-40…+85 °C
Protection class shaft:
IP67
Protection class:
IP67
  • Turck Res-193Ba0T-Iol14B-H1141 Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line
  • Turck Res-193Ba0T-Iol14B-H1141 Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line
$540.10

Description

Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line, Flange with long torque stop, Hollow shaft, 1/4, Optical measuring principle, Shaft material, stainless steel, , 10-30 VDC, SSI (Binary Code), M12 connection, 8-pin, , IP67 rated on the shaft side, 40+85 °C, Max. 4000 rev/min Flange with long torque stop; Hollow shaft; Ø 1/4; Optical measuring principle; Shaft material; stainless steel; IP67 rated on the shaft side; 40…+85 °C; Max. 4000 rev/min; 10-30 VDC; SSI (Binary Code); M12 connection; 8-pin; 360° resolved in 14 bit (16384 positions)
