Turck Ri-01T4F1-2A100-C Encoder 1545768
Turck
$383.00
Manufacturer's Part Number: 1545768

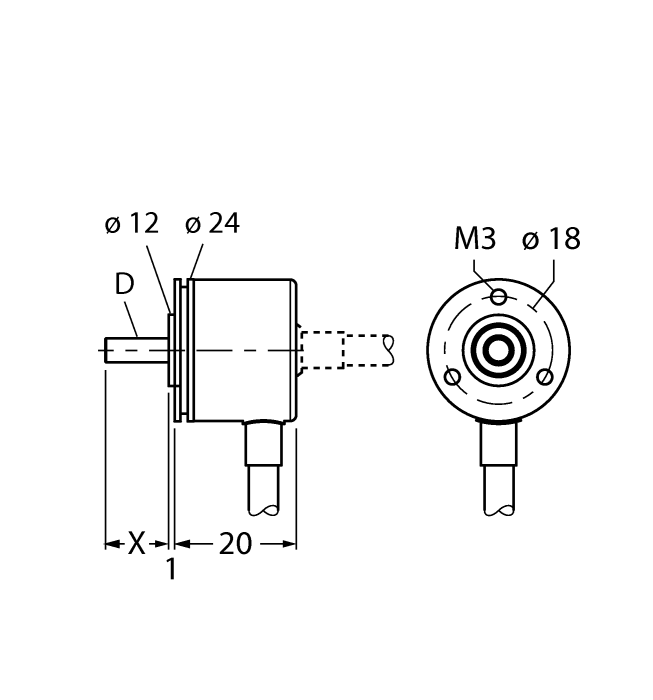

Incremental Encoder. Industrial Line. Ident. no.: 1545768. Synchro flange, à 24 mm. Solid shaft, à 4mm à 10 mm. Optical measuring principle. Shaft material: stainless steel. Protection class IP50 on shaft side. 20
+85 °C. Max. 12000 rpm. 8
30 VDC. Cable connection, 8-pin. Push-pull with inversion. Pulse frequency max. 160 kHz. 100 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 4
- Flange diameter:
- Ø 24 mm
- Flange type:
- Synchro flange
- Resolution incremental:
- 100 ppr
- Operating voltage:
- 8 30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Aluminium
- Ambient temperature:
- -20 +85 °C
- Protection class housing:
- IP64
- Protection class shaft:
- IP50
