Manufacturer's Part Number: 100028253

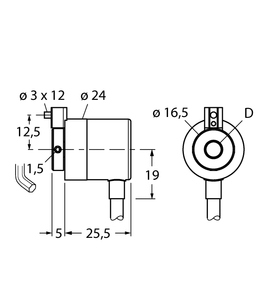

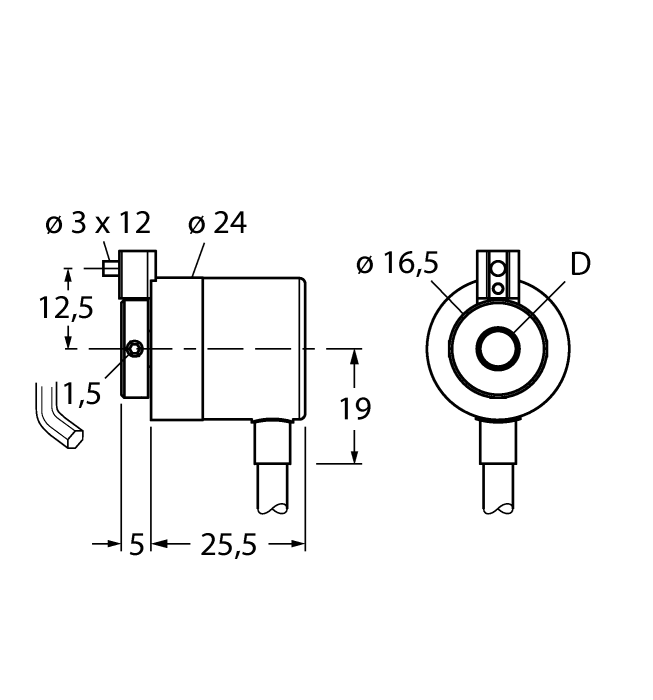

Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 100028253. Flange with torque stop, Ã 24 mm. Blind hole hollow shaft, Ã 6 mm. Maximum plug-in depth, 14 mm. Optical measuring principle. Shaft material: brass. Protection class IP50 on shaft side. 20
+85 °C. Max. 12,000 rpm. 5
24 VDC. Cable connection, 8-pin. Push-pull 7272, invertible. Pulse frequency max. 160 kHz. 10 pulses per revolution
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 6
- Flange diameter:
- Ø 24 mm
- Flange type:
- Flange with torque stop
- Resolution incremental:
- 10 ppr
- Operating voltage:
- 5 24 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Aluminium
- Ambient temperature:
- -20 +85 °C
- Protection class housing:
- IP64
