Turck Ri-10Sa1R-2B342-H1181 Encoder 1545792

Turck
SKU:
RI-10SA1R-2B342-H1181
$390.00
(No reviews yet) Write a Review
Condition:
New
Manufacturer's Part Number: 1545792
Current Stock:

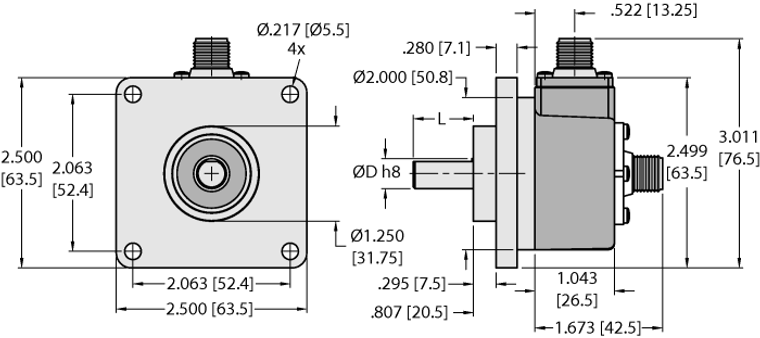

Incremental Shaft Encoder. Industrial Line. Ident. no.: 1545792. Square flange, Ø 63.5 mm. Solid shaft, Ø 3/8” x 7/8”. Optical measuring principle. Shaft material, stainless steel. Protection class IP67 on housing and shaft side. 40…+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 10…30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 342 pulses
Encoder line:
Industrial-Line
Technology:
Optical
Output type:
Incremental
Shaft Type:
Solid shaft
Shaft diameter D:
0.375 in
Flange diameter:
Ø 63.5 mm
Flange type:
Rectangular flange
Resolution incremental:
342 ppr
Operating voltage:
10…30 VDC
Output function:
Push-Pull/HTL, with inverted signals
Electrical connection:
Connector, M12 × 1
Housing material:
Die-cast zinc
Ambient temperature:
-40…+85 °C
Protection class shaft:
IP67
Protection class:
IP67
Manual:
View
Catalog:
View
