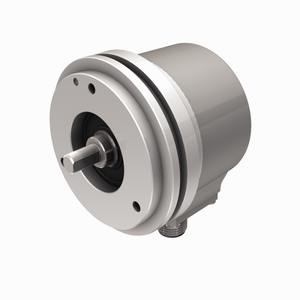

Turck Ri-10Sa1R-2K1250-H1181/N29 Encoder 100036269
Turck
$450.00
Manufacturer's Part Number: 100036269
Incremental Shaft Encoder. Industrial Line. Ident. no.: 100036269. Square flange, Ã 63.5 mm. Solid shaft, Ã 3/8 x 7/8. Code (N29) B leads A, Z gated with B-. Z is 180 deg wide.. Optical measuring principle. Shaft material, stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 5
30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 1250 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D:
- 0.375 in
- Flange diameter:
- Ø 63.5 mm
- Flange type:
- Rectangular flange
- Resolution incremental:
- 1250 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- Push-Pull 7272, with inverted signals
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
