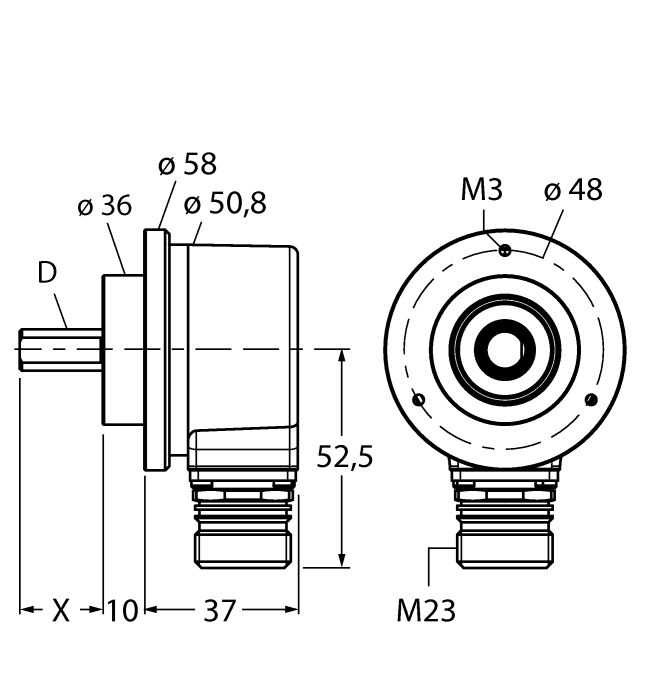

Turck Ri-10T10C-4B5000-12M23 Encoder 1545426
Turck
$390.00
Manufacturer's Part Number: 1545426
Incremental Encoder. Industrial Line. Ident. no.: 1545426. Clamping flange, à 58 mm. Solid shaft, à 10 mm à 20 mm. Optical measuring principle. Shaft material: stainless steel. Protection class IP65 on shaft side. -40
+85 °C. Max. 12000 rpm (continuous operation 6000). 5
30 VDC. Male connector, M23 x 1 , 12-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 5000 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 58 mm
- Flange type:
- Clamping flange
- Resolution incremental:
- 5000 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- RS422, with inverted signals
- Electrical connection:
- Connector, M23
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class housing:
- IP65
- Protection class shaft:
- IP65
- Protection class:
- IP67
