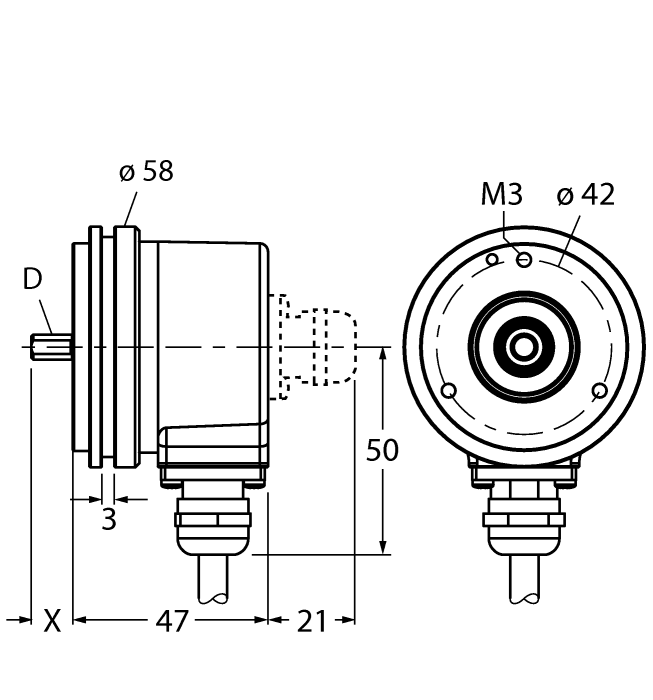

Turck Ri-10T10S-2K5000-C1M Encoder 1546754
Turck
$390.00
Manufacturer's Part Number: 1546754
Incremental Shaft Encoder. Industrial Line. Ident. no.: 1546754. Servo flange, Ã 58 mm. Solid shaft, Ã 10mm x 20mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on shaft side. -40
+85 °C. Max. 12000 rpm (continuous operation 6000). 5
30 VDC. Cable connection, 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 5000 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 58 mm
- Flange type:
- Synchro flange
- Resolution incremental:
- 5000 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- Push-Pull 7272, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP65
- Protection class:
- IP67
