Turck Ri-10T12C-2B500-C1M Encoder 100036345
Turck
$450.00
Manufacturer's Part Number: 100036345

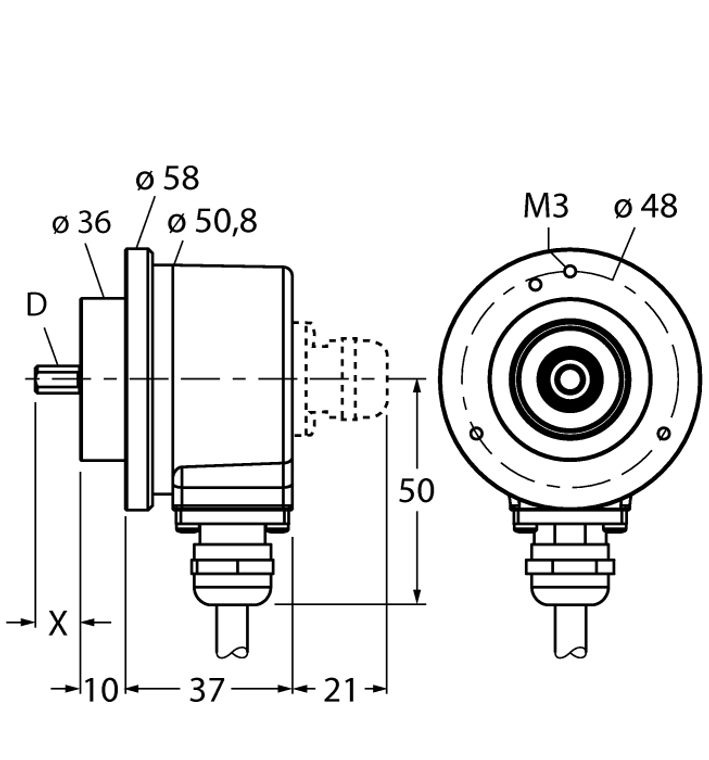

Incremental Shaft Encoder. Industrial Line. Ident. no.: 100036345. Clamping flange, à 58 mm. Solid shaft, à 12 mm à 20 mm. Optical measuring principle. Shaft material: stainless steel. Protection class IP65 on shaft side. -40
+85 °C. Max. 12000 rpm (continuous operation 6000). 10
30 VDC. Cable connection, 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 500 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Flange diameter:
- Ø 58 mm
- Flange type:
- Clamping flange
- Resolution incremental:
- 500 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class housing:
- IP65
- Protection class shaft:
- IP65
- Protection class:
- IP67
