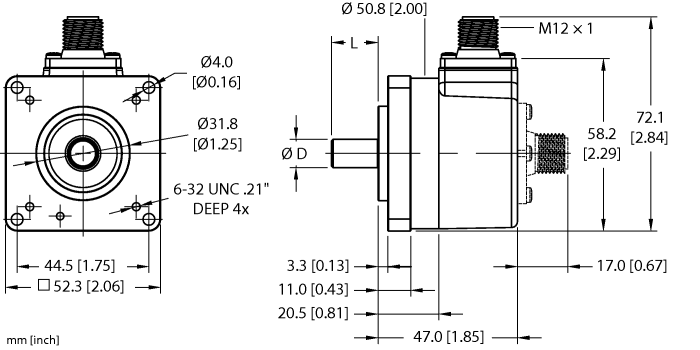

Turck Ri-10T12Z4-4B1024-H1181 Encoder 1545709
Turck
$390.00
Manufacturer's Part Number: 1545709

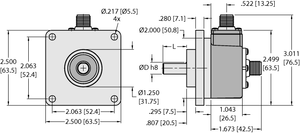

Incremental Shaft Encoder. Industrial Line. Ident. no.: 1545709. Square receptacle, à 50.8 mm. Solid shaft, à 12 mm à 20 mm. Optical measuring principle. Shaft material: stainless steel. Protection class IP65 on shaft side. -40
+85 °C. Max. 12000 rpm (continuous operation 6000). 5
30 VDC. Male connector, M12 x 1 , 8-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 1024 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 12
- Flange diameter:
- Ø 50.8 mm
- Flange type:
- Rectangular flange
- Resolution incremental:
- 1024 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- RS422/TTL, with inverted signals
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP65
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
