Turck Ri-10Ta1S0-4B5000-10Mil/N40 Encoder 1545472
Turck
$390.00
(No reviews yet)
Write a Review
Write a Review
Turck

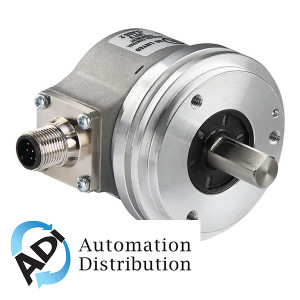

Turck Ri-10Ta1S0-4B5000-10Mil/N40 Encoder 1545472
Manufacturer's Part Number: 1545472
Incremental Shaft Encoder. Industrial Line. Ident. no.: 1545472. Servo flange, Ã 63,5 mm. Solid shaft, Ã 3/8 x 7/8. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on shaft side. -40
+85 °C. Max. 12000 rpm (continuous operation 6000). 5
30 VDC. Male connector MIL, 10-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 5000 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D:
- 0.375 in
- Flange diameter:
- Ø 63.5 mm
- Flange type:
- Synchro flange
- Resolution incremental:
- 5000 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- RS422, with inverted signals
- Electrical connection:
- Connector
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP65
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
