Turck Ri-12H12T-2K2500-H1181 Encoder 1545744

(No reviews yet) Write a Review
SKU:
RI-12H12T-2K2500-H1181
Condition:
New
eCl@ss-Code (V5.1.4)::
27270502 -/- Encoder, incremental
Encoder line:
Industrial-Line
Technology:
Optical
Output type:
Incremental
Shaft Type:
Hollow shaft
Shaft diameter D [mm]:
12 mm
Flange diameter:
Ø 50.8 mm
Flange type:
Flange with mounting element
Resolution incremental:
2500 ppr
Operating voltage:
5…30 VDC
Output function:
Push-Pull 7272, with inverted signals
Electrical connection:
Connector, M12 × 1
Housing material:
Die-cast zinc
Ambient temperature:
-40…+85 °C
Protection class shaft:
IP67
Protection class:
IP67

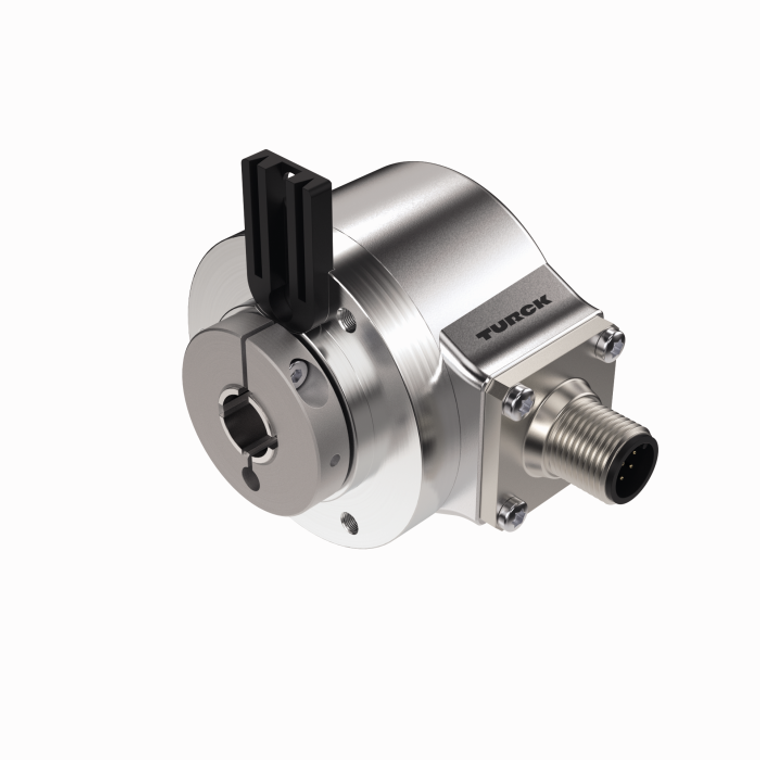

  • Turck Ri-12H12T-2K2500-H1181 Incremental Encoder, Industrial Line
  • Turck Ri-12H12T-2K2500-H1181 Incremental Encoder, Industrial Line
$390.00

Description

Incremental Encoder, Industrial Line, Flange with torque stop, 50.8 mm, Hollow shaft, 12 mm, Optical measuring principle, Shaft material: stainless steel, 530 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, Protection class IP67 on housing and shaft side, 40+85ÿ°C, Max. 6000 rpm (continuous operation 3000 rpm), Resolution, incremental: 2500ÿppr
