Turck Ri-12H15S1-4B1000-H1181 Encoder 1545914
Turck
$450.00
Manufacturer's Part Number: 1545914

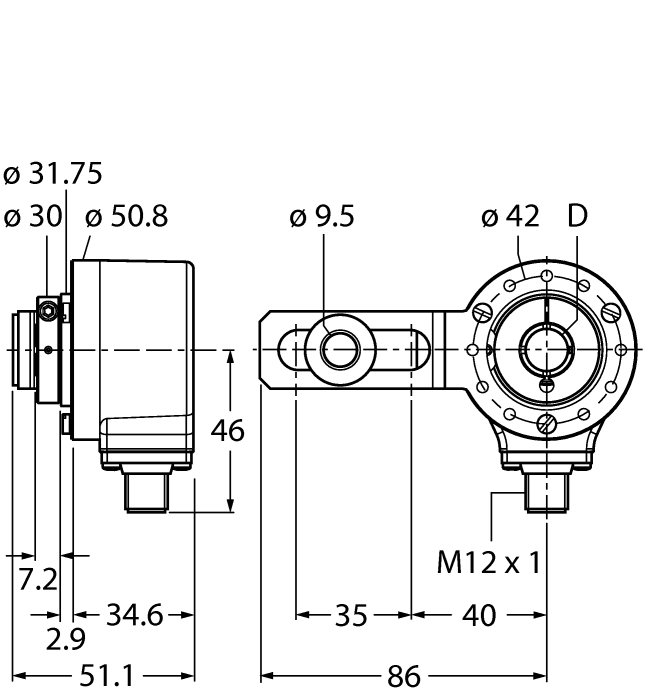

Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 1545914. Flange with tether arm for 40-75mm mounting diameters. Hollow shaft, Ã 15 mm. Optical measuring principle. Shaft material: stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 5
30 VDC. Male connector, M12 x 1 , 8-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 1000 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Accessories conventional encoder
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 15
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 1000 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- RS422/TTL, with inverted signals
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
