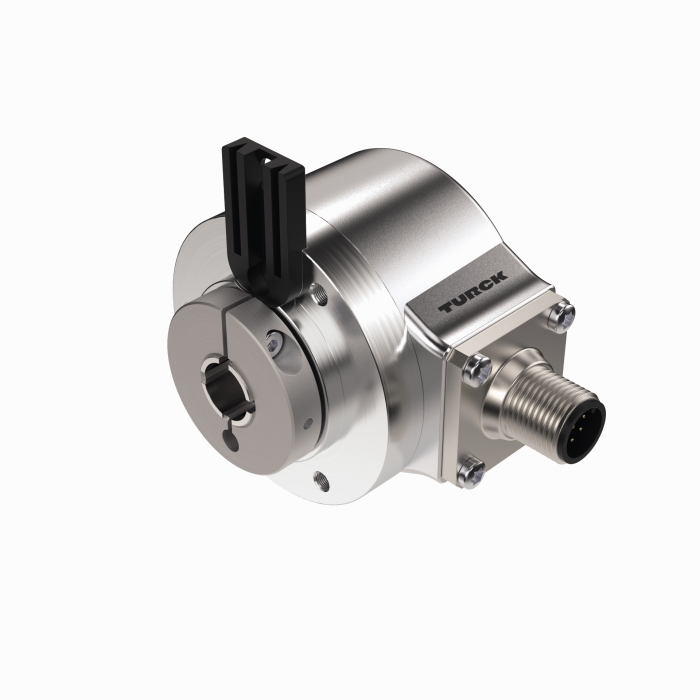

Turck Ri-12Ha0T-2B1000-H1181 Encoder 1545510
Turck
$390.00
Manufacturer's Part Number: 1545510
Incremental Encoder. Industrial Line. Ident. no.: 1545510. Flange with torque stop, Ã 50.8 mm. Hollow shaft, Ã 1/4". Optical measuring principle. Shaft material, stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 10
30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 1000 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 6.25
- Shaft diameter D:
- 0.25 in
- Flange diameter:
- Ø 50.8 mm
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 1000 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
