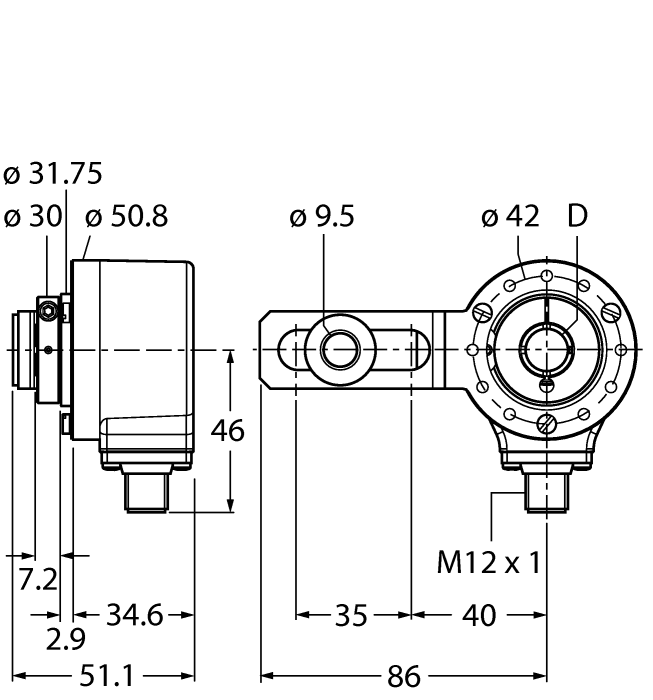

Incremental Encoder. Industrial Line. Ident. no.: 200003322. Flange with tether arm for 40-75mm mounting diameters. Hollow shaft, Ã 3/8. Optical measuring principle. Shaft material: stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 5
30 VDC. Male connector, M12 x 1 , 8-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 500 pulses per revolution
