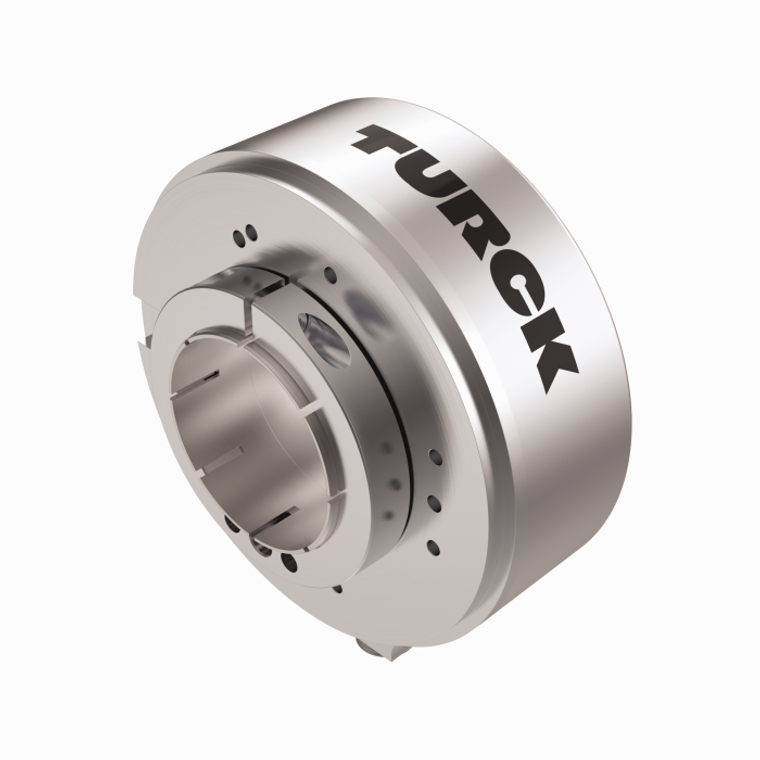

Turck Ri-43H42S-4A1024-C3M Encoder 1545701
Turck
$630.00
Manufacturer's Part Number: 1545701
Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 1545701. Flange without mounting element, Ã 100mm. 3 meter cable. Hollow shaft, Ã 42mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. 5 VDC. Cable connection, 8-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 1024 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 42
- Shaft diameter D:
- 0.625 in
- Flange diameter:
- Ø 100 mm
- Flange type:
- Flange without mounting element
- Resolution incremental:
- 1024 ppr
- Operating voltage:
- 5 0.0 VDC
- Output function:
- RS422, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +80 °C
- Protection class shaft:
- IP65
- Protection class:
- IP65
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
