Turck

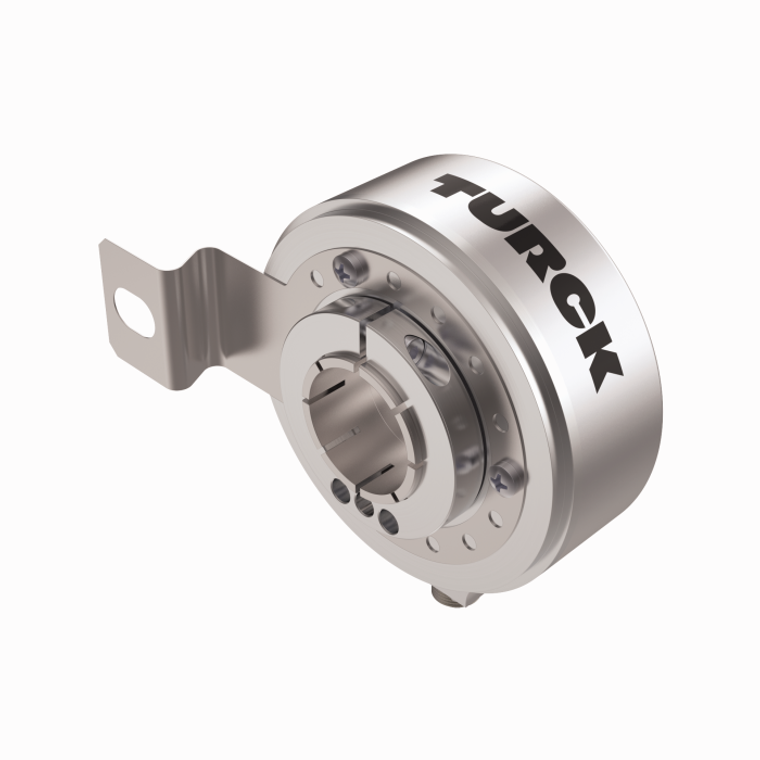

Turck Ri-43Ha6E2-2F2048-H1181/N33/N42 Encoder 1545802

(No reviews yet) Write a Review
SKU:
RI-43HA6E2-2F2048-H1181/N33/N42
MPN:
1545802
Condition:
New
Availability:
Factory Stock: 7
Encoder line:
Industrial-Line
Technology:
Optical
Output type:
Incremental
Shaft Type:
Hollow shaft
Shaft diameter D (mm):
25.4
Shaft diameter D:
1 in
Flange diameter:
00 mm
Flange type:
Flange with mounting element
Resolution incremental:
2048 ppr
Operating voltage:
5?à30 VDC
Output function:
Push-Pull 7272, with inverted signals
Electrical connection:
Connector, M12 ?ù 1
Housing material:
Die-cast zinc
Ambient temperature:
-40?à+80 ??C
Protection class shaft:
IP65
Protection class:
IP65
Manual:
View
Catalog:
View
Datasheet:
View
  • Turck Ri-43Ha6E2-2F2048-H1181/N33/N42 Encoder 1545802
  • Turck Ri-43Ha6E2-2F2048-H1181/N33/N42 Incremental Hollow Shaft Encoder 1545802
$749.70

Description

Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 1545802. Flange with 4 – ½” C-Face Tether, Ø 100 mm. Hollow shaft, Ø 1”. Isolation insert 1545824 RSA-A6 (N42) . Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. 5…30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull 7272, with inverted signals. (N33) A leads B, Z gated with B-, Z is 180º wide.. Pulse frequency max. 300 kHz. 2048 pulses per revolution
