Manufacturer's Part Number: 1545861

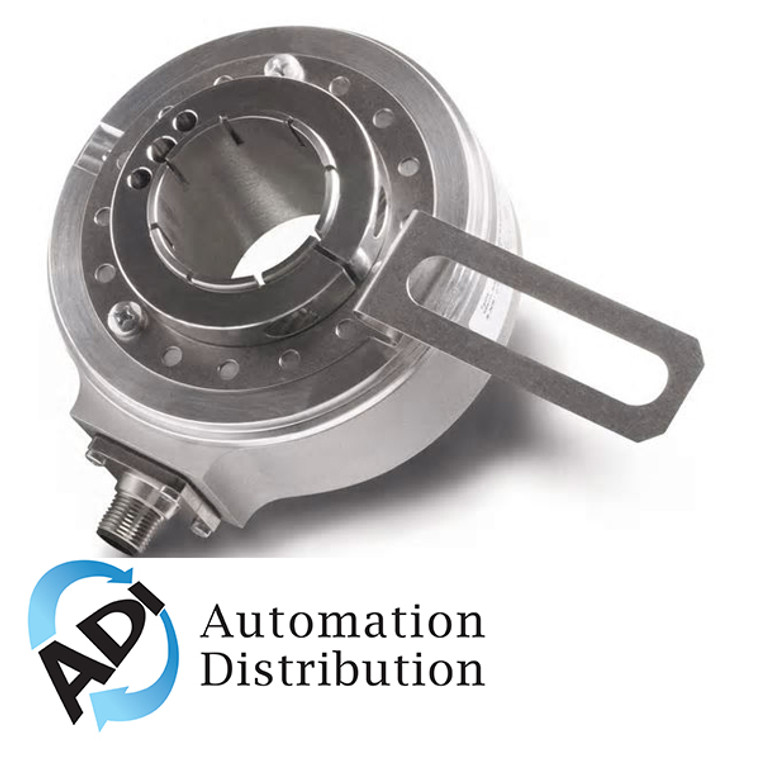

Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 1545861. Flange with long arm bracket, Ã 100 mm. 1 meter cable. Hollow shaft, Ã 1. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. 10
30 VDC. Cable connection, 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 1024 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 25.4
- Shaft diameter D:
- 1 in
- Flange diameter:
- 00 mm
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 1024 ppr
- Operating voltage:
- 10?à30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Cable
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40?à+80 ??C
- Protection class shaft:
- IP65
- Protection class:
- IP65
