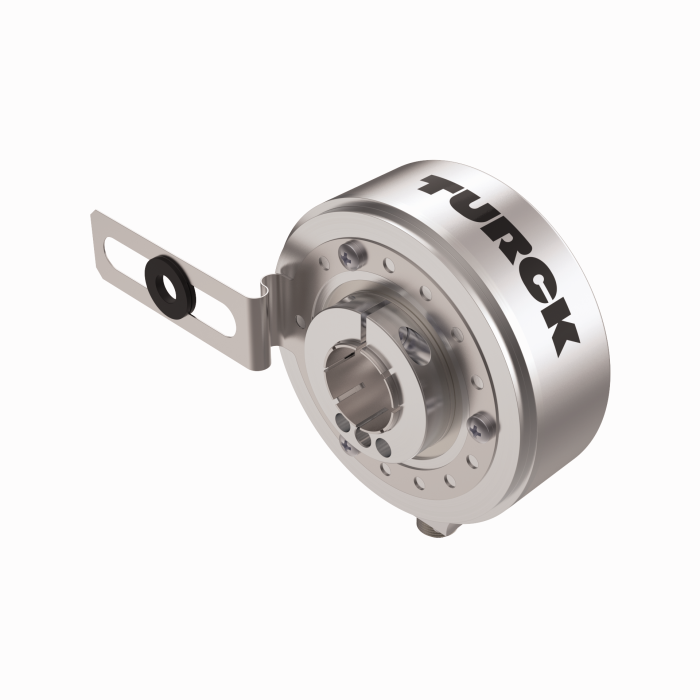

Turck Ri-43Ha7S8-2F1000-H1181/N42 Encoder 1546709
Turck
$749.70
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Ri-43Ha7S8-2F1000-H1181/N42 Encoder 1546709
Manufacturer's Part Number: 1546709
Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 1546709. Flange with long arm bracket, Ã 100 mm. (N42) Isolation insert 1545825 RSA-A7 included. Hollow shaft, Ã 1 1/8. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. 5
30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull 7272, with inverted signals. Pulse frequency max. 300 kHz. 1000 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 28.575
- Shaft diameter D:
- 1.125 in
- Flange diameter:
- 00 mm
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 1000 ppr
- Operating voltage:
- 5?à30 VDC
- Output function:
- Push-Pull 7272, with inverted signals
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40?à+80 ??C
- Protection class shaft:
- IP65
- Protection class:
- IP65
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
