Turck Ri180P1-Qr14-Liu5X2 Encoder 1590829
Turck
$236.70
Manufacturer's Part Number: 1590829
Inductive Angle Sensor. With Analog Output. Premium Line. Ident. no.: 1590829. Rectangular, plastic. Many mounting possibilities. P1-Ri-QR14 included in delivery. Measuring range displayed via LED. Immune to electromagnetic interference. Resolution, 12-bit. 4 wire, 15
30 VDC. Analog output. 0
10 V and 4
20 mA. Cable connection
- Encoder line:
- Premium-Line
- Technology:
- Contactless
- Output type:
- Absolute singleturn
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 6, 6.35

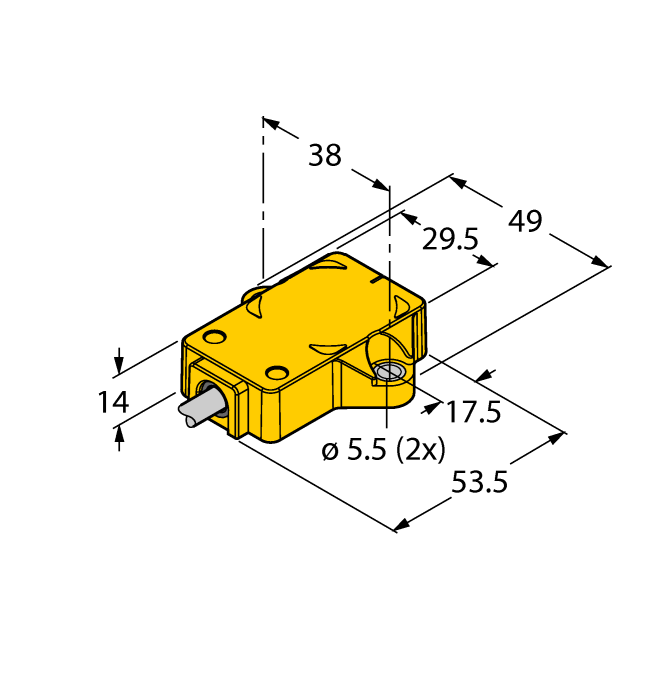

- Construction size:
- 53.5 x 49 x 14 mm
- Flange type:
- Flange without mounting element
- Measuring range:
- 0?à180??
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 4?à20 mA
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP68/IP69K
- Catalog:
- View
- Datasheet:
- View
