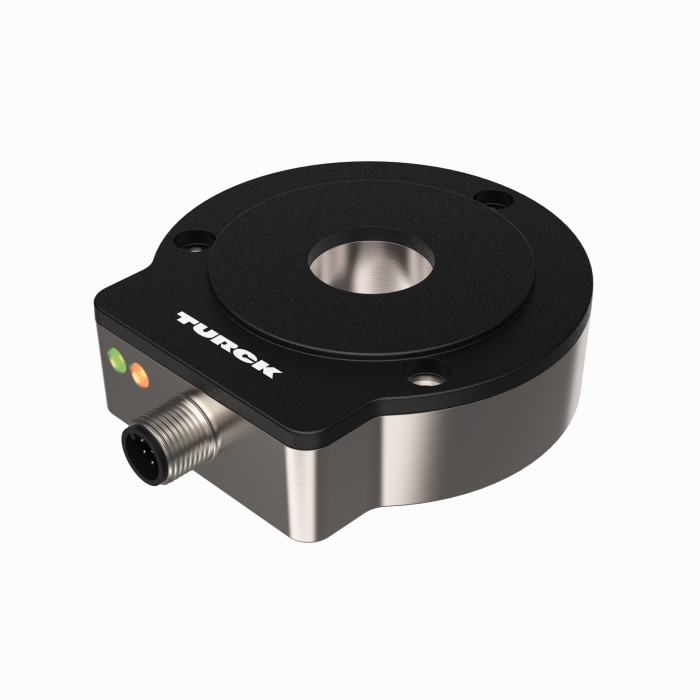

Turck RI360P0-EQR24M0-2500X2-H1181
Turck
$691.50
Manufacturer's Part Number: 100020402
Contactless Encoder with Stainless Steel Housing. Incremental: 2500 ppr. Premium Line. Ident. no.: 100020402. Compact, rugged housing. Active face, plastic PA12-GF30. Housing, stainless steel V4A (1.4404) . Status displayed via LED. Immune to electromagnetic interference. Position of z-track can be set via Easy-Teach. Burst function, absolute angular position output incrementally via Easy-Teach pulse. 10
30 VDC. Male M12 x 1, 8-pin. Push-pull A, B, Z, A (inverse), B (inverse)
- Encoder line:
- Premium-Line
- Technology:
- Contactless
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
- Construction size:
- 81 x 78 x 24 mm
- Flange type:
- Flange without mounting element
- Resolution incremental:
- 2500 ppr
- Operating voltage:
- 10?à30 VDC
- Output function:
- Push-Pull/HTL
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30
- Ambient temperature:
- -25?à+85 ??C
- Protection class:
- IP68/IP69K
