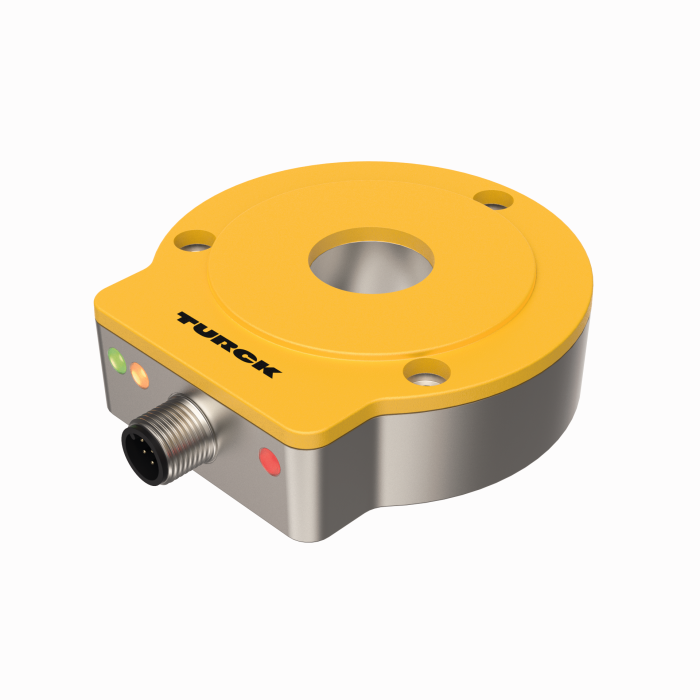

Turck Ri360P0-Qr24M0-Hesg25X3-H1181 Encoder 1590905
Manufacturer's Part Number: 1590905
Contactless Encoder. SSI. Premium Line. Ident. no.: 1590905. Compact, rugged housing. Many mounting possibilities. Status displayed via LED. Positioning element and aluminium ring not incl. . SSI output. 25 bit, Gray-coded. SSI clock rate: 62.5 KHz
1 MHz. Single or multiturn, length of data frame and bit coding parametrizable via PACTware. Default settings: Singleturn Bit 0
Bit 15, Multiturn Bit 16
Bit 21, Status Bit 22
Bit 24. Zero point, sync./async. operating mode adjustable via Easy Teach . Compatible with all standard SSI masters. In sync. mode, jitter < 5 µs required on the master side. Immune to electromagnetic interference . 15
30 VDC. Male M12 x 1, 8-pin
- Encoder line:
- Premium-Line
- Technology:
- Contactless
- Output type:
- Absolute semi-multiturn
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
- Construction size:
- 81 x 78 x 24 mm
- Flange type:
- Flange without mounting element
- Measuring range:
- 0?à360??
- Operating voltage:
- 15?à30 VDC
- Communication protocol:
- SSi
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal/plastic, ZnAlCu1/PBT-GF30-V0
- Ambient temperature:
- -25?à+85 ??C
- Protection class:
- IP68/IP69K
