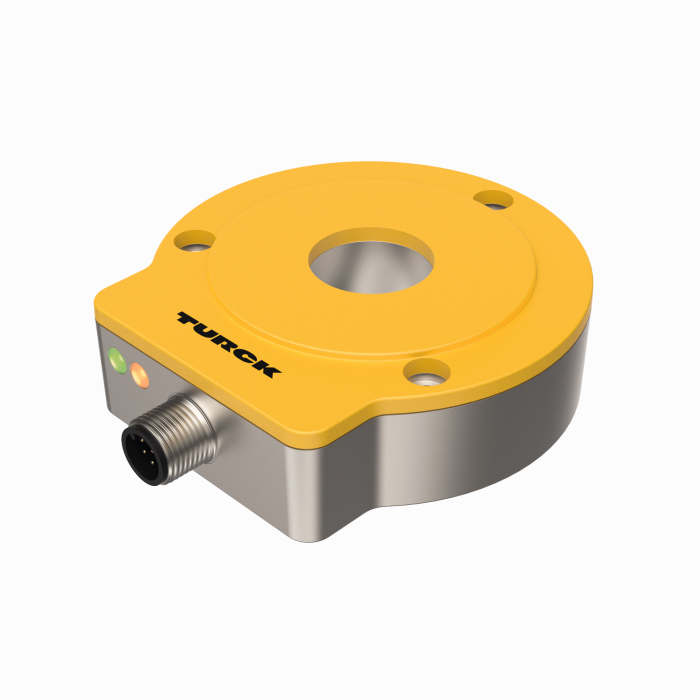

Turck Ri360P0-Qr24M0-Incrx2-H1181/0006 Encoder 1593033
Turck
$468.10
Manufacturer's Part Number: 1593033
Contactless Encoder. Incremental. Premium Line. Ident. no.: 1593033. Compact, rugged housing. Many mounting possibilities. Status displayed via LED. Measuring range displayed via LED. Immune to electromagnetic interference. 6 pulses per revolution (default). 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, 5000, parameterizable via Easy-Teach. Free parametrization of the pulse count in the range from 1 to 5000 via PACTware. Position of z-track can be set via Easy-Teach. Burst function, absolute angular position output incrementally via Easy-Teach pulse. Max. output frequency: 200 kHz. 10
30 VDC. Male M12 x 1, 8-pin. Push-pull A, B, Z, A (inverse), B (inverse)
- Encoder line:
- Premium-Line
- Technology:
- Contactless
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
- Construction size:
- 81 x 78 x 24 mm
- Flange type:
- Flange without mounting element
- Resolution incremental:
- 6 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Metal/plastic, ZnAlCu1/PBT-GF30-V0
- Ambient temperature:
- -25 +85 °C
- Protection class:
- IP68/IP69K
