Turck Ri360P1-Dsu35-Eliu5X2-H1151 Encoder 1590866
Turck
$443.80
Manufacturer's Part Number: 1590866
Inductive Angle Sensor. With Analog Output. Premium Line. Ident. no.: 1590866. Rectangular, housing DSU35. Plastic, PP-GF30-VO. Detecting angular positions of 0° to 360°. P1-Ri-DSU35 positioning element included in delivery. Measuring range displayed via LED. Programmable measuring range. Immune to electromagnetic interference. Resolution, 12-bit. 15
30 VDC. 0
10 V and 4
20 mA . Male M12 x 1, 5-pin
- Encoder line:
- Premium-Line
- Technology:
- Contactless
- Output type:
- Absolute singleturn

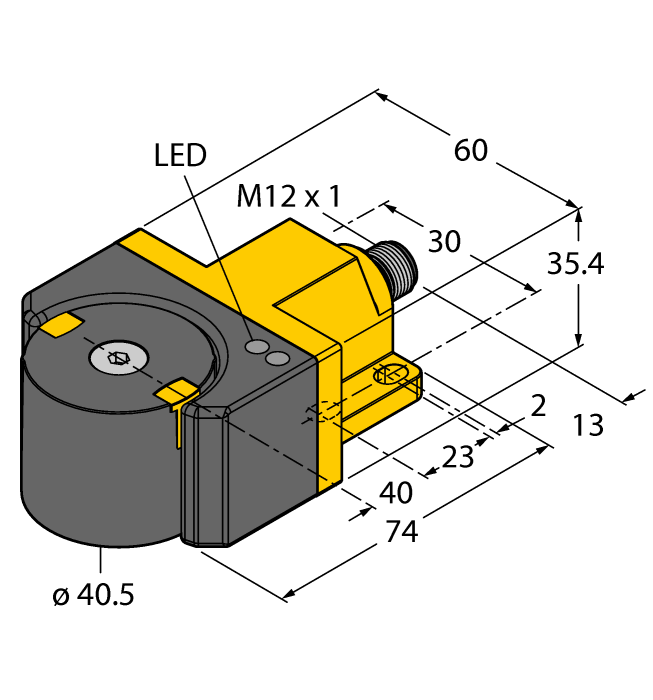

- Construction size:
- 74 x 60 x 35.4 mm
- Flange type:
- Flange without mounting element
- Measuring range:
- 0?à360??
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 4?à20 mA
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PP-GF30
- Ambient temperature:
- -25?à+75 ??C
- Protection class:
- IP68/IP69K
