Manufacturer's Part Number: U2170-01

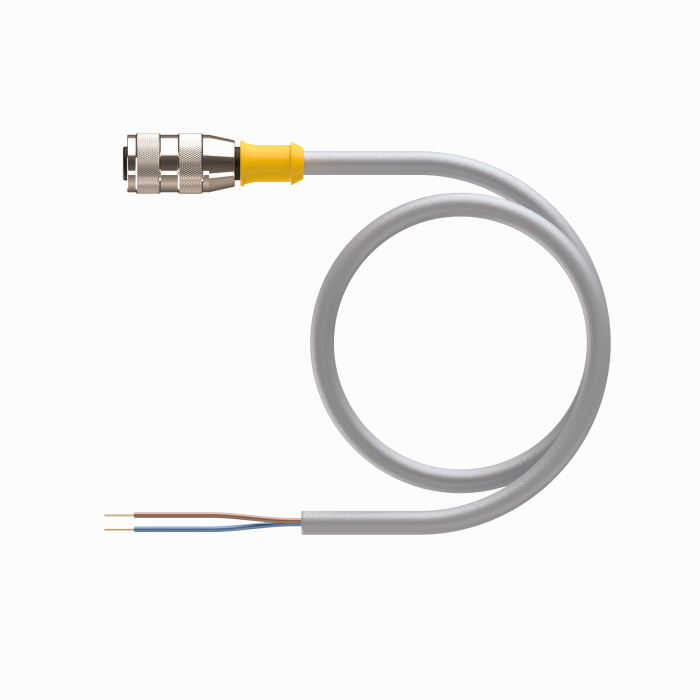

Actuator and Sensor Cable. Connection Cable. Ident. no.: U2170-01. M12, Female, Straight, 2-pin. General Purpose Cable. TPU jacket, Gray, 2X20 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Number of contacts:
- 4
- Connector body:
- Plastic, TPU, Yellow
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 250 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 4.83 mm
- Length (L):
- 2.0 m
- Cable jacket:
- TPU, Gray
- Number of Conductors:
- 2
- Protection class (When coupled):
- IP68, IP69K
- Special Features:
- High FlexC-trackSuitable for drag chain use
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
