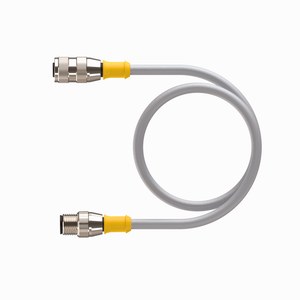

Turck Rk 4.4T-74-Rs 4.4T Cordsets U-86163
Turck
$309.10
Manufacturer's Part Number: U-86163
Actuator and Sensor Cable. Extension Cable. Ident. no.: U-86163. M12, Female, Straight, 4-pin. M12, Male, Straight, 4-pin. Instrumentation Tray Cable. Gray PVC jacket, 4X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Connector B:
- Male, M12 ?ù 1, Straight, A-code
- Voltage:
- 250 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.33 mm
- Length (L):
- 74.0 m
- Cable jacket:
- PVC, Gray
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP68, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
