Turck Rkm 190-5M Cordsets U-30888
Turck
$145.90
Manufacturer's Part Number: U-30888
Actuator and Sensor Cable. Straight Male Connector to Straight Female Connector. Ident. no.: U-26778. Straight Male 1 1/8 minifast Connector. Straight Female 1 1/8 minifast Connector. 1-1/8 Male, Straight, 19-pin. 1-1/8 Female, Straight, 19-pin. Instrumentation Tray Cable. Yellow PVC jacket, shielded, 3X18+16X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Application:
- Signal
- Design:
- Double-ended
- Connector A:

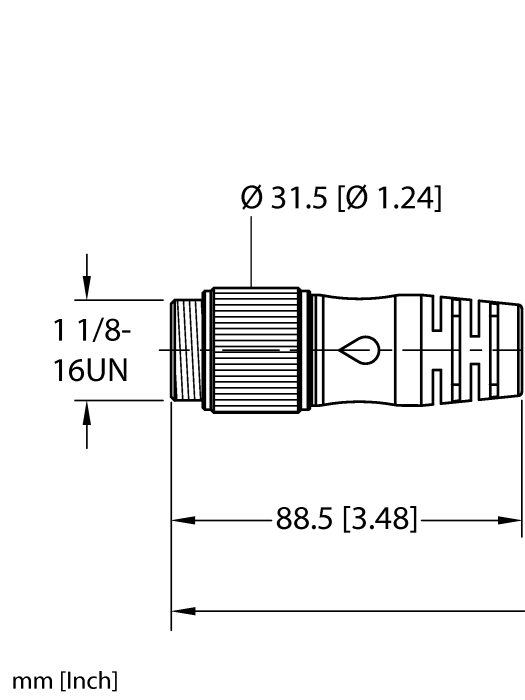

- Male, 1 1/8-16 UN, Straight
- Connector B:
- Female, 1 1/8-16 UN, Straight
- Voltage:
- 300 V
- Current:
- 4 A
- Cable diameter:
- 0.01 mm
- Length (L):
- 5.0 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Tray cable
- Approvals:
- UL 2238, CE, RoHS
