Manufacturer's Part Number: U2020-19

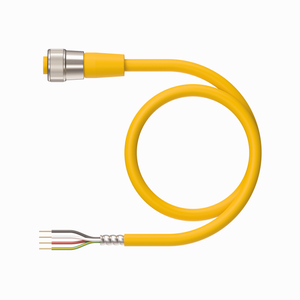

Actuator and Sensor Cable. Connection Cable. Ident. no.: U2020-19. 7/8 Female, Straight, 4-pin. Interlocked Aluminum Armor. Armorfast Instrumentation Cable. Yellow PVC jacket, cable armor: IAA, 4X18 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, CSA FT1, CSA FT4, IEC 60332-3-22
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, 7/8-16 UN, Straight
- Number of contacts:
- 4
- Connector body:
- Plastic, TPU, Yellow
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 300 V
- Current:
- 9 A
- Cable diameter:
- 5.24 mm
- Length (L):
- 4.0 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Armor cableTray cableExposed run
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
