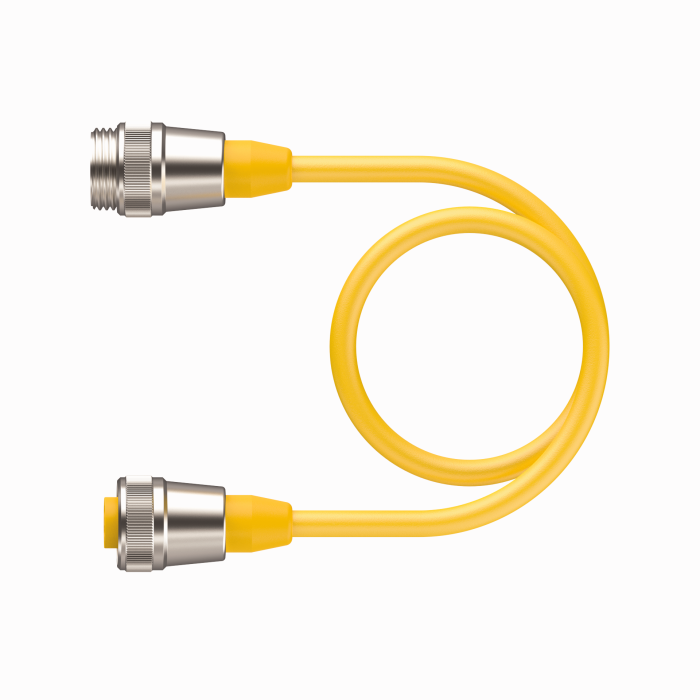

PROFIBUS-DP power cable. PUR cable jacket. Ident. no.: U99-12831. Power cable: 5 Ã 18 AWG. Jacket material: TPU,. Jacket color: yellow. Jacket diameter: 7.2 mm. UL, CSA approval. RoHS compliant. Protection class IP67. 7/8" female, straight. 7/8" male, straight. Cable length: 6.0 m. 7/8 Male, Straight, 5-pin. 7/8 Female, Straight, 5-pin. General Purpose Cable. Yellow TPU jacket, 5X18 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Power (>11 Amps)
- Design:
- Double-ended
- Connector A:
- Male, 7/8-16 UN, Straight
- Connector body:
- Plastic, TPU, Yellow
- Connector B:
- Female, 7/8-16 UN, Straight
- Connector body:
- Plastic, TPU, Black
- Voltage:
- 600 V
- Current:
- 9 A
- Cable diameter:
- ?ÿ 7.2 mm
- Length (L):
- 6.0 m
- Cable jacket:
- TPU, Yellow
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP67
- Approvals:
- UL, CSA
