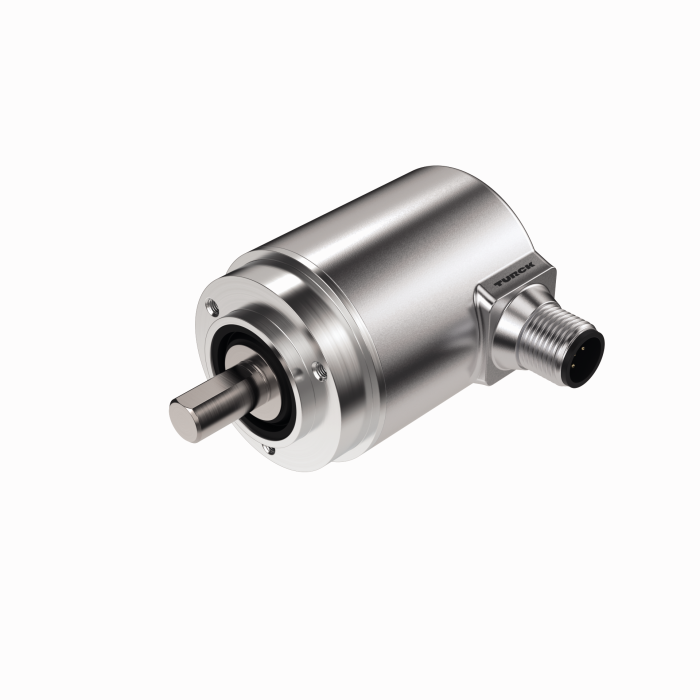

Turck Rm-101S10C-9D38B-H1151 Encoder 1545884
Turck
$878.50
Manufacturer's Part Number: 1545884
Absolute Rotary Encoder - Multiturn. Industrial Line. Ident. no.: 1545884. Clamping flange, à 36 mm. Solid shaft, à 10 mm à 20 mm. Magnetic measuring principle. Shaft material: stainless steel. IP67 rated on the shaft side. 40
+85 °C. Max. 4000 rev/min. 10-30 VDC. CANopen DS 406 V4.0. M12 connection, 5-pin
- Encoder line:
- Industrial-Line
- Technology:
- Magnetic
- Output type:
- Absolute multiturn
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 36 mm
- Flange type:
- Clamping flange
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- CANopen
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
