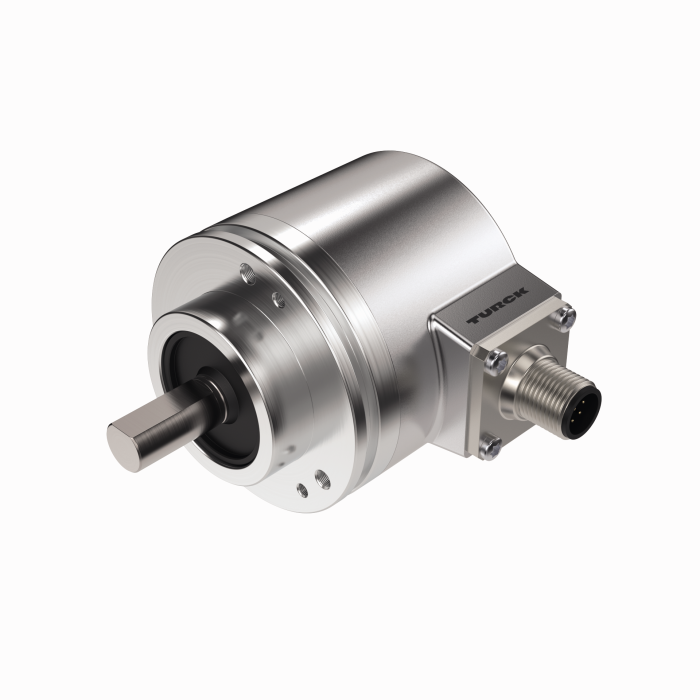

Turck Rm-103T10C-5C13S12M-H1181/N16 Encoder 1545892
Turck
$1,379.90
Manufacturer's Part Number: 1545892
Absolute Rotary Encoder - Multiturn. Industrial Line. Ident. no.: 1545892. Ã 58 mm clamping flange. Solid shaft, Ã 10mm x 20mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on shaft side. -40
+85 °C. Max. 6000 rpm. 10-30 VDC. SSI Binary. Male connector, M12 x 1, 8-pole. Singleturn, 13-bit resolution. Multiturn, 12-bit resolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Absolute multiturn
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 58 mm
- Flange type:
- Clamping flange
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- SSi
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP65
- Protection class:
- IP67
