Turck RM-106B12E-9D32B-B1M12/N46 ID# 200004508
Turck
$1,567.40
Manufacturer's Part Number: 200004508

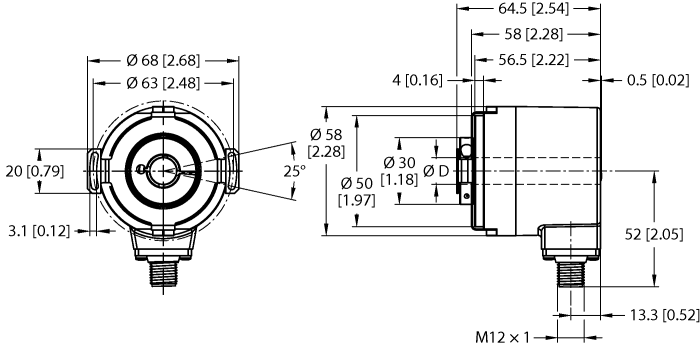

Absolute Rotary Encoder - Multiturn. Industrial Line. Ident. no.: 200004508. Flange with slotted flex mount, Ã 63 mm. Hollow shaft, Ã 12mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. CANopen. M12 x 1 connector. Singleturn resolution scalable to 16 bit (default 16 bit). Multiturn resolution scalable to 16 bit (default 16 bit)
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Absolute multiturn
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 12
- Flange diameter:
- ?ÿ 63 mm
- Flange type:
- Flange with stator coupling
- Operating voltage:
- 10?à30 VDC
- Communication protocol:
- CANopen
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40?à+80 ??C
- Protection class shaft:
- IP65
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
