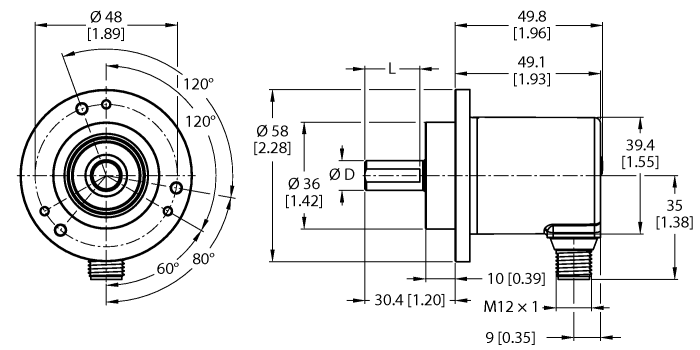

Turck Rm-121T10C-9D38B-H1151 Encoder 1545891
Turck
$1,266.20
Manufacturer's Part Number: 1545891
Absolute Rotary Encoder - Multiturn. Industrial Line. Ident. no.: 1545891. Ø 58 mm clamping flange. Solid shaft, Ø 10mm x 20mm. Optical measuring principle. Shaft material, stainless steel. 10-30 VDC. CANopen DS 406 V4.0. M12 connection, 5-pin
- Encoder line:
- Industrial-Line
- Technology:
- Magnetic
- Output type:
- Absolute multiturn
- Shaft Type:
- Solid shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 58 mm
- Flange type:
- Clamping flange
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- CANopen
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP65
- Manual:
- View
- Catalog:
- View
