Manufacturer's Part Number: 200010787

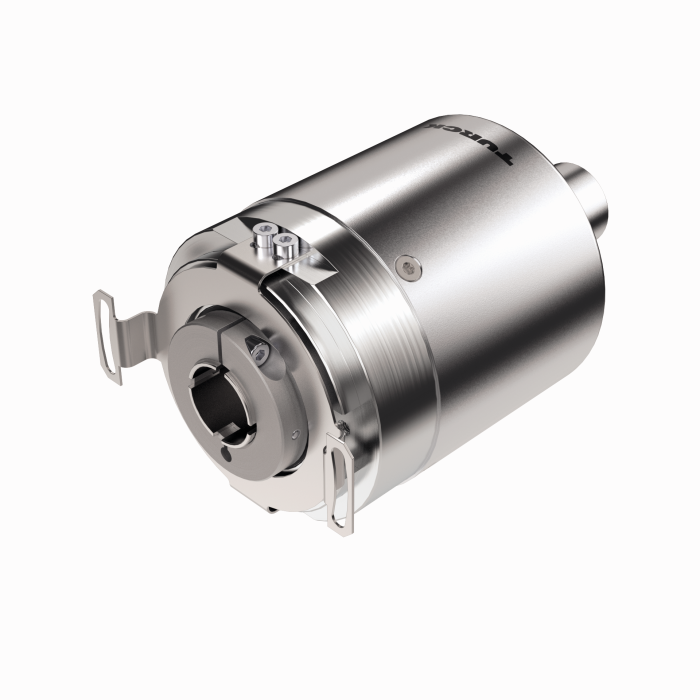

Absolute Rotary Encoder - Singleturn. Industrial Line. Ident. no.: 200010787. Flange with slotted flex mount, Ã 63mm. Hollow shaft, Ã 3/8 in. (9.525mm). Optical measuring principle. Shaft material, stainless steel. IP67 rated on shaft side. -40
+80 °C. Max. 9000 rpm. 10
30 VDC. Ethernet/IP. M12 Ã 3 male connector, 4-pin. Singleturn resolution scalable up to 19 bit, default 18 bit
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Absolute singleturn
- Shaft Type:
- Blind hole shaft
- Shaft diameter D (mm):
- 9.525
- Shaft diameter D:
- 0.375 in
- Flange diameter:
- Ø 63 mm
- Flange type:
- Flange with stator coupling
- Measuring range:
- 0 360°
- Operating voltage:
- 10 30 VDC
- Communication protocol:
- EtherNet/IP
- Electrical connection:
- Connector, 3 x M12
- Housing material:
- Aluminium
- Ambient temperature:
- -40 +80 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
