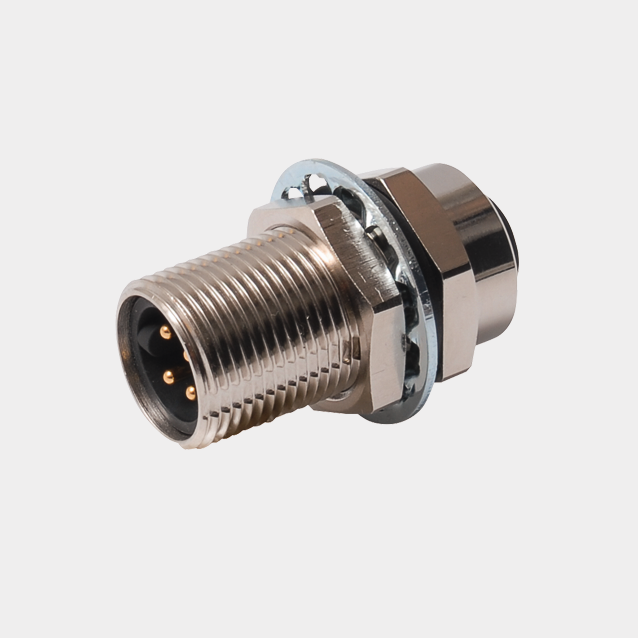

Turck Rsf Rkf 40/22 Receptacles U2309-47
Turck
$51.00
Manufacturer's Part Number: U2309-47
Actuator and Sensor Receptacle. Panel Feed-through. Ident. no.: U2309-47. 7/8 minifast, Male, Receptacle, 4-pin. Mounting thread: 7/8-16UN. 7/8 minifast, Female, Receptacle, 4-pin
- Application:
- Signal
- Connector A:
- Male, 7/8-16 UN
- Mounting orientation:
- Front mount
- Mounting thread:
- 7/8-16 UN
- Connector B:
- Female, 7/8-16 UN
- Mounting type:
- Rear mount
- Mounting Thread B:
- 7/8-16 UN
- Voltage:
- 600 V
- Current:
- 9 A
- Protection class (When coupled):
- IP67
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
