Manufacturer's Part Number: U-32560

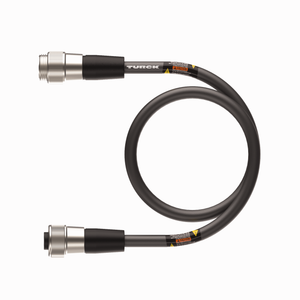

Industrial Sensor Cable. TPE cable jacket. Ident. no.: U-32560. 7/8 Male, Straight, 3-pin. Power Tray/Exposed Run/Direct Burial Cable. Black TPE jacket, 3X14 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL 1061, CSA FT1, CSA FT4
- Application:
- Power (>11 Amps)
- Design:
- Single-ended
- Connector A:
- Male, 7/8-16 UN, Straight
- Number of contacts:
- 3
- Connector body:
- Plastic, TPU, Black
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 600 V
- Current:
- 21 A
- Cable diameter:
- ?ÿ 9.6 mm
- Length (L):
- 10.0 m
- Cable jacket:
- TPE, Black
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Tray cableExposed run
- Approvals:
- UL 2237, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
