Turck

Turck Rsm Rkm 190-5M Cordsets U-26778

(No reviews yet) Write a Review
SKU:
RSM RKM 190-5M
Condition:
New
Application:
Signal
Design:
Double-ended
Connector A:

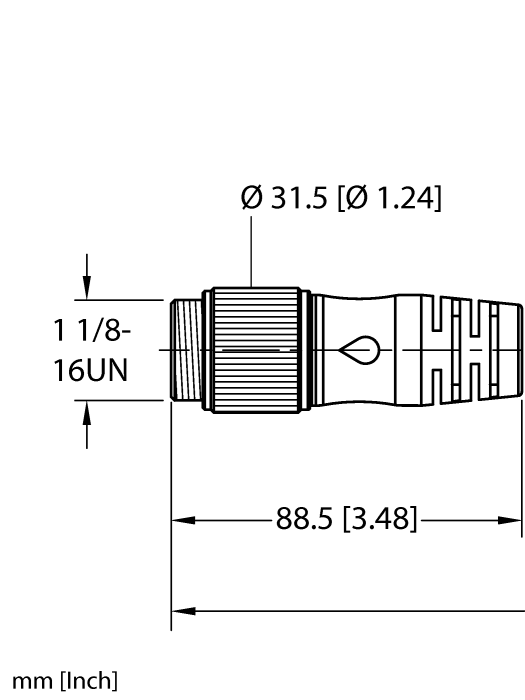

Male, 1 1/8-16 UN, Straight
Connector B:
Female, 1 1/8-16 UN, Straight
Voltage:
300 V
Current:
4 A
Cable diameter:
Ø 10.01 mm
Length (L):
5.0 m
Cable jacket:
PVC, Yellow
Number of Conductors:
3
Protection class (When coupled):
IP67, IP68, IP69, IP69K
Special Features:
Tray cable
Approvals:
UL 2238, CE, RoHS
Flyer:
View
Catalog:
View
$211.40

Description

Actuator and Sensor Cable. Straight Male Connector to Straight Female Connector. Ident. no.: U-26778. Straight Male 1 1/8 minifast Connector. Straight Female 1 1/8 minifast Connector. 1-1/8” Male, Straight, 19-pin. 1-1/8” Female, Straight, 19-pin. Instrumentation Tray Cable. Yellow PVC jacket, shielded, 3X18+16X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
