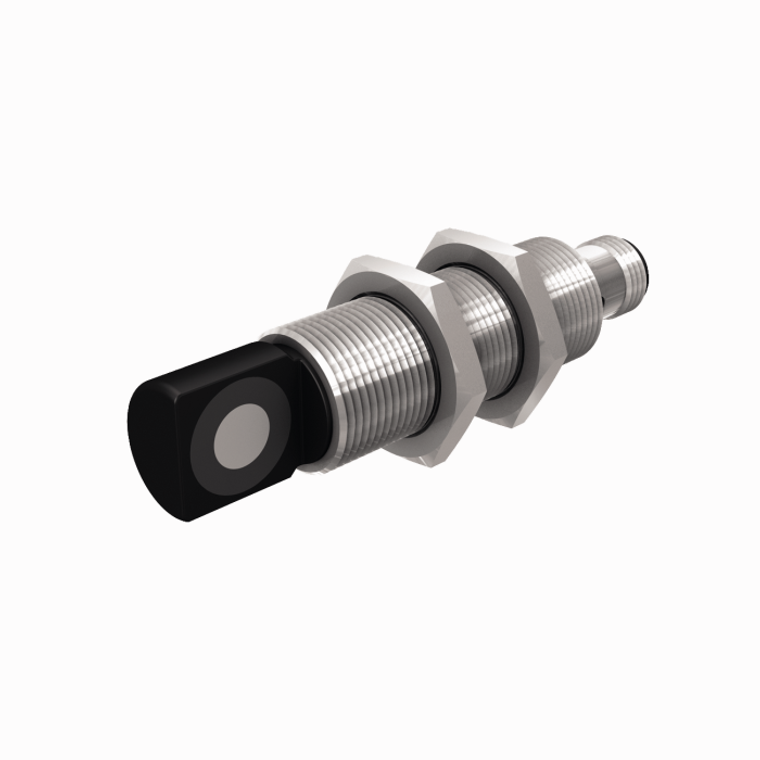

Turck Ru100L-M18Ms-Up8X2-H1151 Ultrasonic 1610079
Turck
$277.30
Manufacturer's Part Number: 1610079
Ultrasonic Sensor. Retroreflective Sensor. Ident. no.: 1610079. Rectangular transducer front. Cylindrical housing M18, potted. Connection via M12 x 1 male. Temperature compensation. Teach-in range: 15
98 cm. Resolution: 1 mm. Aperture angle of sonic cone: ±16 °. 1 x switching output, PNP. Configurable via Teach-In. Parameterizable NO/NC
- Function:
- Retroreflective
- Operating mode:
- Time of Flight
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Radiation direction:
- side
- Range:
- 150 1000 mm
- Operating voltage:
- 15 30 VDC
- Switching element function:
- NO/NC
- Output function:
- PNP
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Metal, CuZn, Nickel Plated
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Approvals:
- CE, cULus
- Special features:
- Compact
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
