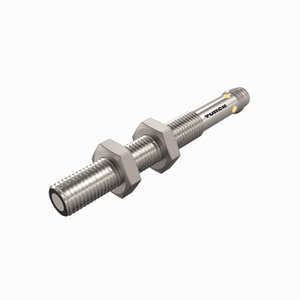

Turck Ru10U-M08-Up8X-V1141 Ultrasonic 100003157
Turck
$239.00
Manufacturer's Part Number: 100003157
Ultrasonic Sensor. Diffuse Mode Sensor. Ident. no.: 100003157. Smooth sonic transducer face. Cylindrical housing M08, potted. Connection via M8 Ã 1 male connector. Teach range adjustable via connection cable. Blind zone: 2 cm. Range: 10 cm. Resolution: 0.2 mm. Aperture angle of sonic cone: ±9 °. 1x switching output, PNP. Teachable settings. NO/NC programmable. IO-Link
- Function:
- Proximity
- Operating mode:
- Time of Flight
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Range:
- 20?à100 mm
- Resolution:
- 0.2 mm
- Operating voltage:
- 15?à30 VDC
- Switching element function:
- NO/NC
- Output function:
- PNP
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M8 ?ù 1
- Housing material:
- Metal, CuZn, Nickel Plated
- Ambient temperature:
- 0?à+50 ??C
- Protection class:
- IP67
- Approvals:
- CE, cULus
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
