Turck Ru40U-M18Ms-Ap8X2-H1151 Ultrasonic 1610105
Turck
$315.60
Manufacturer's Part Number: 1610105

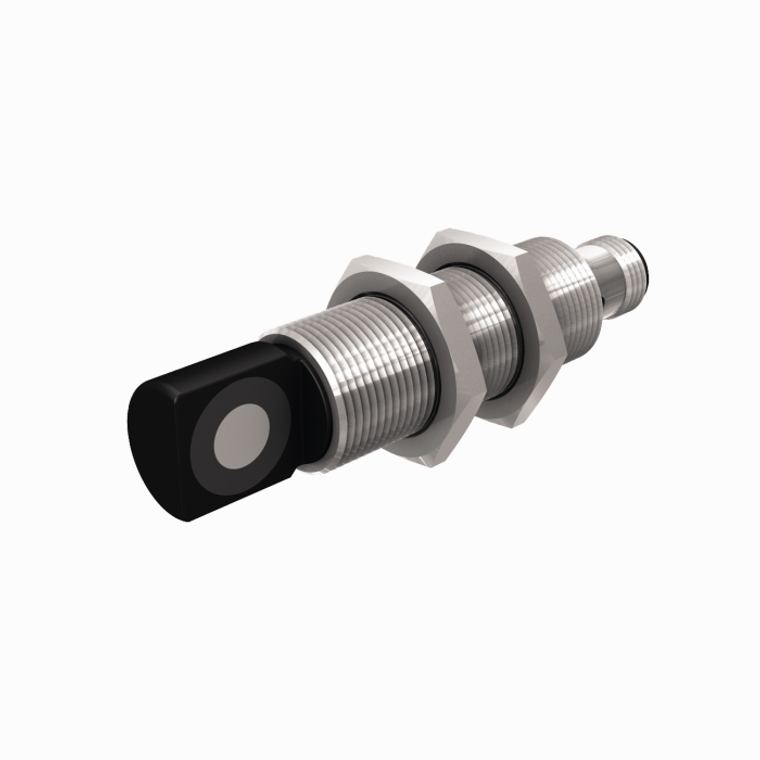

Ultrasonic Sensor. Diffuse Mode Sensor. Ident. no.: 1610105. Rectangular transducer front. Cylindrical housing M18, potted. Connection via M12 x 1 male. Temperature compensation. Blind zone: 2.5 cm. Range: 40 cm. Resolution: 0.5 mm. Aperture angle of sonic cone: ±15 °. PNP switching output. NO/NC programmable. IO-Link
- Function:
- Proximity
- Operating mode:
- Time of Flight
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Radiation direction:
- side
- Range:
- 25?à400 mm
- Resolution:
- 0.5 mm
- Operating voltage:
- 15?à30 VDC
- Switching element function:
- NO/NC
- Output function:
- PNP
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, CuZn, Nickel Plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- CE, cULus
