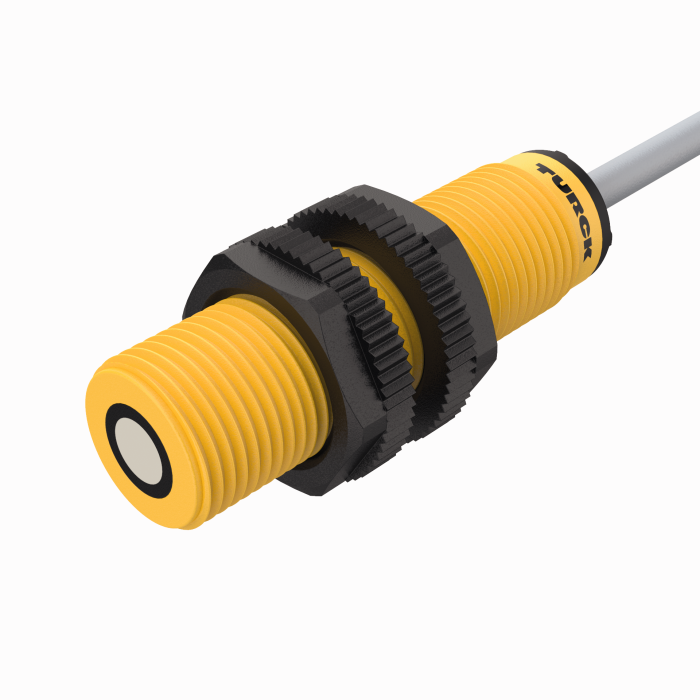

Turck Ru50U-S18-Li8X Ultrasonic 100000747
Turck
$167.00
Manufacturer's Part Number: 100000747
Ultrasonic Sensor. Diffuse Mode Sensor. Ident. no.: 100000747. Smooth sonic transducer face. Cylindrical housing S18, potted. Connection via cable, 2 m. Temperature compensation. Blind zone: 5 cm. Range: 50 cm. Aperture angle of sonic cone: ±20 °. Analog output, 4
20 mA. Adjustable measuring range
- Function:
- Proximity
- Operating mode:
- Time of Flight
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Radiation direction:
- straight
- Range:
- 50 500 mm
- Resolution:
- 0.2 mm
- Operating voltage:
- 15 30 VDC
- Output function:
- Analog output
- Current output:
- 4 20 mA
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, LCP, Yellow
- Ambient temperature:
- -20 +50 °C
- Protection class:
- IP67
- Approvals:
- CE, cULus
- Special features:
- Compact
- Catalog:
- View
- Datasheet:
- View
